Tutorial: Coefficients with Sympy

This tutorial explains how the physics of a SLOTH problem is described with Coefficient objects, and how to write your own coefficients with the Sympy interface.

The running example goes from the double-well potential of the Allen-Cahn equation to the free energy of two sintering particles (Cahn-Hilliard + Allen-Cahn), taken from the tests/Studies/sintering/test1 case of the SLOTH repository. The structure of a main.cpp is assumed to be known (see the tutorial SLOTH Input Files in a Nutshell).

Slides

This tutorial is also available as a slide deck: download the PDF.

1. Anatomy of a Coefficient

Step 1 – The physics lives in coefficients

In SLOTH, the equation is carried by the integrators: the AllenCahn integrator assembles the weak form, the residual and the Jacobian of

$$\frac{\partial\varphi}{\partial t} = -M\left[\omega\,W'(\varphi) - \lambda\,\Delta\varphi\right]$$

What changes from one material to another is in the coefficients: the mobility $M$ (Glossary::Mobility), the free energy $\omega W$ (Glossary::FreeEnergy) and the capillarity $\lambda$ (Glossary::Capillary). For an energy, the integrator also needs the first and second derivatives, used in the residual and the Jacobian of the Newton solver: this is why SLOTH generates coefficients with Sympy, which differentiates the formula exactly.

Step 2 – Quantity, scheme and function

Coefficient energy(Glossary::FreeEnergy, Scheme::Implicit, W(omega));

A Coefficient is made of three ingredients:

QuantitySchemeFunction

A Glossary quantity says what the coefficient is: FreeEnergy, Mobility, Capillary, GradEnergy, Temperature, Dirichlet, Neumann, …

Integrators look a coefficient up by its quantity: the AllenCahn integrator searches the coefficients of the problem for a FreeEnergy, a Mobility and a Capillary.

The scheme says at which state the function is evaluated:

Scheme	Evaluated with	Derivatives in the Jacobian
Scheme::Implicit	the current Newton iterate	yes
Scheme::Explicit	the fields of the previous time step $t^n$	no
Scheme::SemiImplicit	both, see explicit_variables	for the implicit variables

A constant takes no scheme.

A constant, a function provided by SLOTH such as W(omega), or your own class generated by Sympy from a JSON file. The latter is the topic of this tutorial.

Step 3 – Three ways to give the function

A constantA SLOTH built-inYour own formula

Coefficient capillary(Glossary::Capillary, lambda);

No scheme; the derivatives are zero.

W(omega), Fw(omega), H(), Log(a), GradientEnergy(lambda): double wells, interpolation function, logarithmic energy and gradient energy, available in any input file (see the common list of coefficients). They are themselves generated by Sympy from a JSON file of the SLOTH kernel, exactly as your own coefficients will be.

{
    "expression": "…",
    "variables": "c",
    "class_name": "Gc",
    "outputfile": "MyCoefficients"
}

Sympy writes the class Gc and its derivatives; it is then used as Coefficient(…, Gc()).

2. A First Coefficient

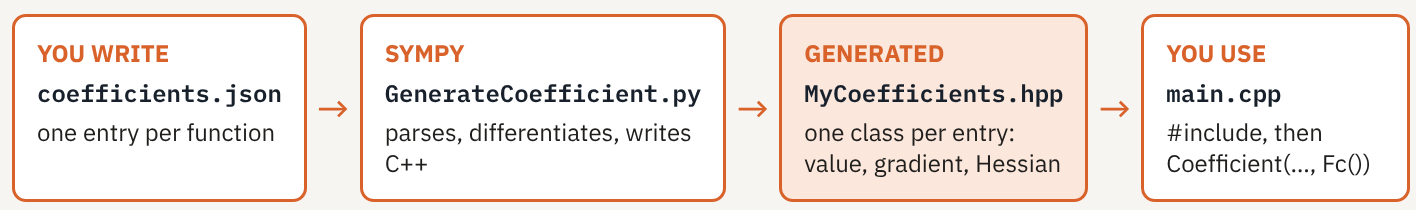

Step 1 – From a formula to a C++ class

You write the formulas in a JSON file. The script GenerateCoefficient.py (in the scripts folder of SLOTH, or provided by an installed SLOTH as Sloth_COEFFICIENT_SCRIPT) parses each entry with Sympy, computes the first and second derivatives, and writes one C++ class per entry in the header named by outputfile. The header is then included in main.cpp.

By handWith CMake

python3 GenerateCoefficient.py -r -f coefficients.json

The -r option overwrites existing files. Python 3 and Sympy are required (see the ExprTk and Sympy installation page).

add_custom_command(
  OUTPUT ${CMAKE_CURRENT_BINARY_DIR}/MyCoefficients.hpp
  COMMAND ${Python3_EXECUTABLE} ${Sloth_COEFFICIENT_SCRIPT} -r -f ${CMAKE_CURRENT_SOURCE_DIR}/coefficients.json
  WORKING_DIRECTORY ${CMAKE_CURRENT_BINARY_DIR}
  DEPENDS ${CMAKE_CURRENT_SOURCE_DIR}/coefficients.json)

The header is regenerated whenever the JSON file changes (see Using an installed SLOTH).

Step 2 – The double well, written by you

[
    {
    "expression": "phi*phi*(1-phi)*(1-phi)",
    "variables": "phi",
    "class_name": "DoubleWell",
    "outputfile": "MyCoefficients"
    }
]

This entry defines $W(\varphi)=\varphi^2(1-\varphi)^2$. The four keys used here are required:

Key	Meaning
expression	the formula, in Sympy syntax
variables	the unknowns; derivatives are taken with respect to them (separated by spaces or commas)
class_name	name of the generated C++ class
outputfile	basename of the generated .hpp file

The optional keys constants, auxiliary_variables, coordinates and gradient are introduced below. In main.cpp, the generated class is used like any built-in:

#include "MyCoefficients.hpp"

Coefficient energy(Glossary::FreeEnergy, Scheme::Implicit, DoubleWell(omega));

The prefactor

Every generated class accepts one optional argument, the prefactor (omega above, default 1). It multiplies the function and all its derivatives. It is convenient for sensitivity studies, or to reuse one formula for several coefficients.

Step 3 – What Sympy writes

For each entry, the generator writes a class deriving from FunctionCoefficient with three functions: the value, the first derivatives (one per variable) and the Hessian. An extract of the class generated for the double well:

class DoubleWell : public FunctionCoefficient { … };

// value
double phi = input_vector[0];
double F = std::pow(phi, 2) * std::pow(1 - phi, 2);
return this->prefactor_ * F;

// first derivatives, one per variable
gradient[0] = this->prefactor_ *
  (std::pow(phi, 2) * (2 * phi - 2) + 2 * phi * std::pow(1 - phi, 2));

• The derivatives are exact, computed symbolically by Sympy, not by finite differences.
• The unknowns are read by position: the i-th variable of the JSON entry is input_vector[i], the i-th auxiliary variable is auxiliary_vector[i]. This is the origin of the ordering convention.
• The header is a build product: never edit it by hand, change the JSON file and regenerate.

Step 4 – Constants, physical constants and time

[
    {
    "expression": "a*x*x + b*x*y + c*z*x*y",
    "variables": "x, y z",
    "constants": "(a:2.0),(b:30.0),(c:0.1)",
    "class_name": "FunctionA",
    "outputfile": "MyCoefficients"
    }
]

Constants are written as (name:value) pairs separated by commas. They are substituted when the class is generated: changing one means regenerating. A value can also be the name of a SLOTH physical constant:

Value	Meaning
H	Planck constant (Physical::H)
NA	Avogadro constant (Physical::NA)
K	Boltzmann constant (Physical::K)
R	molar gas constant (Physical::R)
T	current time, updated by SLOTH

The constant T makes a coefficient time-dependent, for example "constants": "(a:2.0),(t:T)" with "expression": "a*x*x*t".

Constant or prefactor?

A constant is frozen when the class is generated; the prefactor is chosen in main.cpp for each Coefficient. Use the prefactor for a parameter you want to vary between runs or between coefficients.

3. Several Fields

Step 1 – Variables and auxiliary variables

The running example is the sintering of two particles: Cahn-Hilliard solves the density $c$, Allen-Cahn solves the grain fields $\eta_1, \eta_2$. The same free energy enters both problems:

$$f(c,\eta_1,\eta_2) = A\,c^2(1-c)^2 + B\Big[c^2 + 6(1-c)\sum_{i}\eta_i^2 - 4(2-c)\sum_{i}\eta_i^3 + 3\Big(\sum_{i}\eta_i^2\Big)^2\Big]$$

A coefficient must therefore say which fields are unknowns and which are only read:

• variables: the unknowns of the problem that uses the coefficient. Sympy differentiates with respect to them; they are read, in order, from the problem's VARS.
• auxiliary_variables: fields solved by another problem. They are only read, with no derivative; they are read, in order, from the auxiliary variables passed as the last argument of the problem.

Step 2 – One energy, one class per problem

The same formula is therefore generated twice, once per problem, with different roles for the fields:

For Cahn-HilliardFor Allen-Cahn

{
"expression": "A*c*c*(1-c)*(1-c) + B*(c*c + 6*(1-c)*Sum(eta[i]*eta[i],(i,1,2)) - 4*(2-c)*Sum(eta[i]*eta[i]*eta[i],(i,1,2)) + 3*(Sum(eta[i]*eta[i],(i,1,2)))^2)",
"variables": "c",
"auxiliary_variables": "eta(1..2)",
"constants": "(A:16.0),(B:1.0)",
"class_name": "Fc",
"outputfile": "SinteringCoefficients"
}

TransientPB ch_pb("CahnHilliard", ch_oper,
                  ch_vars,             // c, mu   → input_vector
                  {ch_coef, ch_coef}, ch_pst,
                  ac_vars);            // η1, η2 → auxiliary_vector

{
"expression": "A*c*c*(1-c)*(1-c) + B*(c*c + 6*(1-c)*Sum(eta[i]*eta[i],(i,1,2)) - 4*(2-c)*Sum(eta[i]*eta[i]*eta[i],(i,1,2)) + 3*(Sum(eta[i]*eta[i],(i,1,2)))^2)",
"variables": "eta(1..2)",
"auxiliary_variables": "c",
"constants": "(A:16.0),(B:1.0)",
"class_name": "Feta",
"outputfile": "SinteringCoefficients"
}

TransientPB ac_pb("AllenCahn", ac_oper,
                  ac_vars,             // η1, η2 → input_vector
                  {ac_coef, ac_coef}, ac_pst,
                  ch_vars);            // c, mu   → auxiliary_vector

Cahn-Hilliard solves c and mu: c comes first, so it is input_vector[0], and mu is simply not used by Fc. Allen-Cahn receives c and mu as auxiliary fields: c is auxiliary_vector[0].

Ordering convention

• The variables of the JSON entry follow the order of the problem's VARS.
• The auxiliary variables of the JSON entry follow the order of the problem's auxiliary VARS.

A wrong order is not detected: the wrong field is silently read. See Use of coefficients in SLOTH problems.

Step 3 – N fields: indexed variables and sums

[
    {
    "expression": "Sum( -(x[i]*x[i])/2.0 + (x[i]*x[i]*x[i]*x[i])/4.0 , (i, 1, 30) )",
    "variables": "x(1..30)",
    "class_name": "Gw",
    "outputfile": "GrainsCoefficients"
    }
]

This entry defines

$$\sum_{i=1}^{30}\Big(\tfrac{1}{4}x_i^4-\tfrac{1}{2}x_i^2\Big)$$

• x(1..30) declares the family $x_1, \dots, x_{30}$, in variables or auxiliary_variables.
• Sum(expression, (i, 1, 30)) sums over it, with x[i] inside the expression; several index ranges give double sums.
• The bounds of the sum must be consistent with the declaration.

In the sintering energy, the sums over the grains are written as Sum(eta[i]*eta[i], (i,1,2)): the same JSON describes $N$ grains by changing the bounds. See Defining a summation.

Step 4 – Gradient energies

[
    {
    "expression": "2.5*dot(x,x) + sdot(eta(1..2))",
    "variables": "x",
    "auxiliary_variables": "eta(1..2)",
    "class_name": "GradC",
    "outputfile": "SinteringCoefficients",
    "gradient": true
    }
]

With "gradient": true, each variable stands for the gradient of the field: dot(x,x) is $\nabla x\cdot\nabla x$ and sdot(eta(1..2)) is $\sum_i \nabla\eta_i\cdot\nabla\eta_i$ (a factor in front of sdot, numeric or constant, multiplies the whole sum). This entry defines the gradient energy of the Cahn-Hilliard problem of the sintering test,

$$\tfrac{5}{2}\,\nabla c\cdot\nabla c + \sum_{i=1}^{2}\nabla\eta_i\cdot\nabla\eta_i$$

used as

Coefficient ch_grad(Glossary::GradEnergy, Scheme::Implicit, GradC());

A gradient coefficient cannot depend on spatial coordinates. See Defining a scalar product.

Step 5 – A field-dependent mobility

Kinetic coefficients can depend on the fields too. In the sintering test, the Cahn-Hilliard mobility combines volume, vapour, surface and grain-boundary diffusion:

$$D(c,\eta) = D_{vol}\,\phi(c) + D_{vap}\,\big(1-\phi(c)\big) + D_{surf}\,c(1-c) + D_{gb}\sum_{i\neq j}\eta_i\,\eta_j, \qquad \phi(c)=c^3\,(10-15c+6c^2)$$

[
    {
    "expression": "dvol*c*c*c*(10.0-15.0*c+6.0*c*c) + dvap*(1.0-c*c*c*(10.0-15.0*c+6.0*c*c)) + dsurf*c*(1-c) + dgb*(Sum(eta[i],(i,1,2))*Sum(eta[i],(i,1,2)) - Sum(eta[i]*eta[i],(i,1,2)))",
    "variables": "c",
    "auxiliary_variables": "eta(1..2)",
    "constants": "(dvol:0.04),(dvap:0.002),(dsurf:16.0),(dgb:1.6)",
    "class_name": "D",
    "outputfile": "SinteringCoefficients"
    }
]

Coefficient ch_mobility(Glossary::Mobility, Scheme::Explicit, D());

With Scheme::Explicit, the mobility is evaluated with the fields of the previous time step and adds no derivative to the Jacobian. Sympy still generates the derivatives, so Scheme::Implicit remains possible.

4. Coefficients in the Problem

Step 1 – One collection per variable

// Cahn-Hilliard (sintering test)
Coefficient ch_energy(Glossary::FreeEnergy, Scheme::Implicit, Fc());
Coefficient ch_grad(Glossary::GradEnergy, Scheme::Implicit, GradC());
Coefficient ch_capillary(Glossary::Capillary, ch_lambda);
Coefficient ch_mobility(Glossary::Mobility, Scheme::Explicit, D());
Coefficients ch_coef(ch_energy, ch_capillary, ch_mobility, ch_grad);

TransientPB ch_pb("CahnHilliard", ch_oper, ch_vars, {ch_coef, ch_coef}, ch_pst, ac_vars);

• Found by quantity: the integrator picks the FreeEnergy, Mobility, Capillary… it needs in the Coefficients collection; their order inside the collection is free.
• One collection per variable: the problem takes a vector of Coefficients, as many as variables and in the same order. Cahn-Hilliard has two unknowns, c and mu, which both receive ch_coef.
• Which quantities? Each integrator lists the quantities it reads on the PDEs page of the User Manual.

Names in the test

In tests/Studies/sintering/test1, the classes called Fc and Feta here are named Gc and Geta.

Step 2 – Going further

Space-dependentConditionalSemi-implicitCombined

"expression": "-pi*t*cos(pi*x)",
"coordinates": "x,y",

The coordinates key makes a coefficient depend on the position, typically for non-uniform boundary conditions attached to edges with set_bdr_index_coef (see tests/HeatTransfer/2D/test5). Coordinates are not unknowns. See coefficients depending on spatial coordinates.

"expressions": [
    {"expression": "…", "lower": 0.0, "upper": 0.75},
    {"expression": "…", "default": true}],
"range_variable": "x1",

Piecewise formulas on one range variable, with a default expression outside the ranges. See Defining a conditional coefficient.

"variables": "x(1..30)",
"explicit_variables": "xn(1..30)",

The xn variables are taken at the previous time step; the coefficient is used with Scheme::SemiImplicit. See Defining a semi-implicit coefficient.

auto P = ProductCoefficient({&A, &B});
auto S = SumCoefficient({&P, &P});

Products and sums of generated classes, built in main.cpp. See Defining a product or a sum.

Step 3 – Six checks before running

Checklist

1. Variable order: the JSON variables follow the order of the problem's VARS.
2. Auxiliary order: the JSON auxiliary_variables follow the order of the problem's auxiliary VARS.
3. Every symbol declared: once, as a variable, an auxiliary variable, a constant or a coordinate.
4. Regenerate: after any change to the JSON file (CMake does it with a custom command).
5. The right scheme: Implicit for energies, Explicit to freeze a coefficient at $t^n$, SemiImplicit with explicit_variables.
6. The right quantity: the Glossary type the integrator expects.

5. Where to Find Information

Where	What
Coefficients page of the User Manual	every key of the JSON file
PDEs page of the User Manual	the quantities read by each integrator
ExprTk and Sympy, Using an installed SLOTH	installing Sympy; generating coefficients with CMake
tests/Studies/sintering/test1	multiphase energy, gradient energy, mobility
tests/HeatTransfer/2D/test5	coefficients depending on spatial coordinates
tests/Coefficients/test2	constants
SLOTH Input Files in a Nutshell	the rest of the main.cpp
