Partial Differential Equations

How SLOTH solves Partial Differential Equations?

Partial Differential Equations (PDEs) are the most important kind of problem for SLOTH.

As illustrated in the figure 1, PDEs for SLOTH can be expressed in the following form:

$$\begin{align} F(U(x,t))&=G(U(x,t)) \end{align}$$

where $U(x,t)$ is the vector of unknowns expressed as a function of the time $t$ and the position $x$. In this equation, $F$ and $G$ are two nonlinear forms associated with the time derivative operator and the differential operators, respectively. For steady problem, $F=0$.

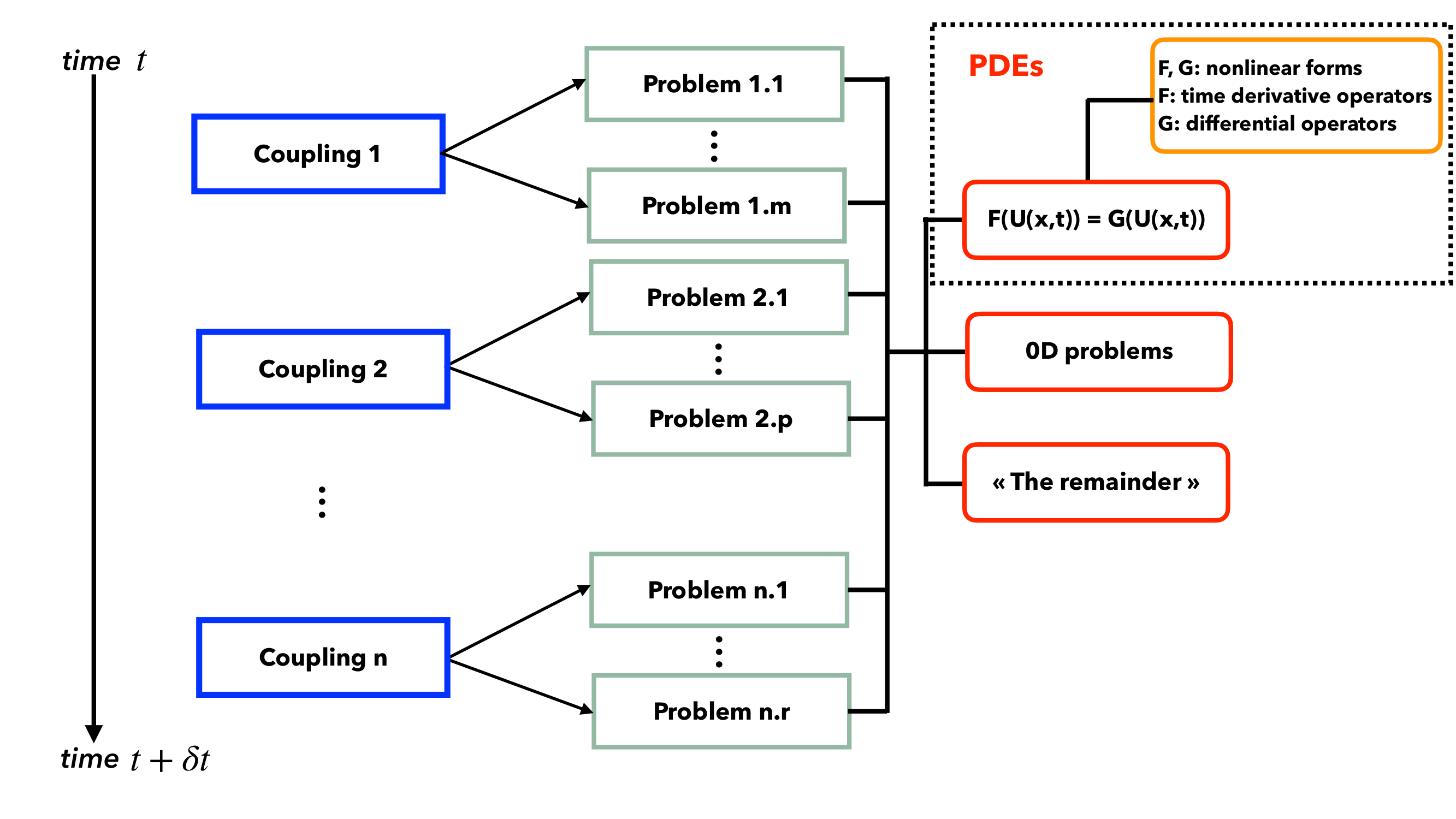

Figure 1 : Schematic description of one time-step for `SLOTH` simulations with a focus on PDEs.

For SLOTH, all PDEs are solved using a unified nonlinear algorithm based on the Newton solver. This approach is adopted to maximize the generality of the implementation, although it may incur a minor computational overhead for linear PDEs.

On the use of a Newton Solver

The use of a Newton solver represents a pragmatic choice. Nevertheless, the code has been structured in such a way that alternative algorithms can be incorporated in the future.

Definition of PDEs for SLOTH is made with a C++ object of type Problem, which is a template class instantiated with three template parameters: first, an OPERATOR object, second, a Variables object (see VARS in the example), and third, a PostProcessing object (see PST in the example).

Alias declaration for Problem class template

using PDE = Problem<OPERATOR, VARS, PST>;

The OPERATOR object in Problem refers to an object that inherits from base classes responsible for solving the nonlinear system (1). These classes are illustrated in the figure 2: OperatorBase is a base class with two derived classes:

• TransientOperatorBase, which inherits from the TimeDependentOperator class of MFEM and is dedicated to unsteady PDEs,
• SteadyOperatorBase, which inherits from the Operator class of MFEM and is dedicated to steady PDEs.

In addition to these classes, there are two classes used to compute the residual and the Jacobian associated with the Newton-Raphson algorithm -- see ReducedOperator and SteadyReducedOperator classes in the figure 2.

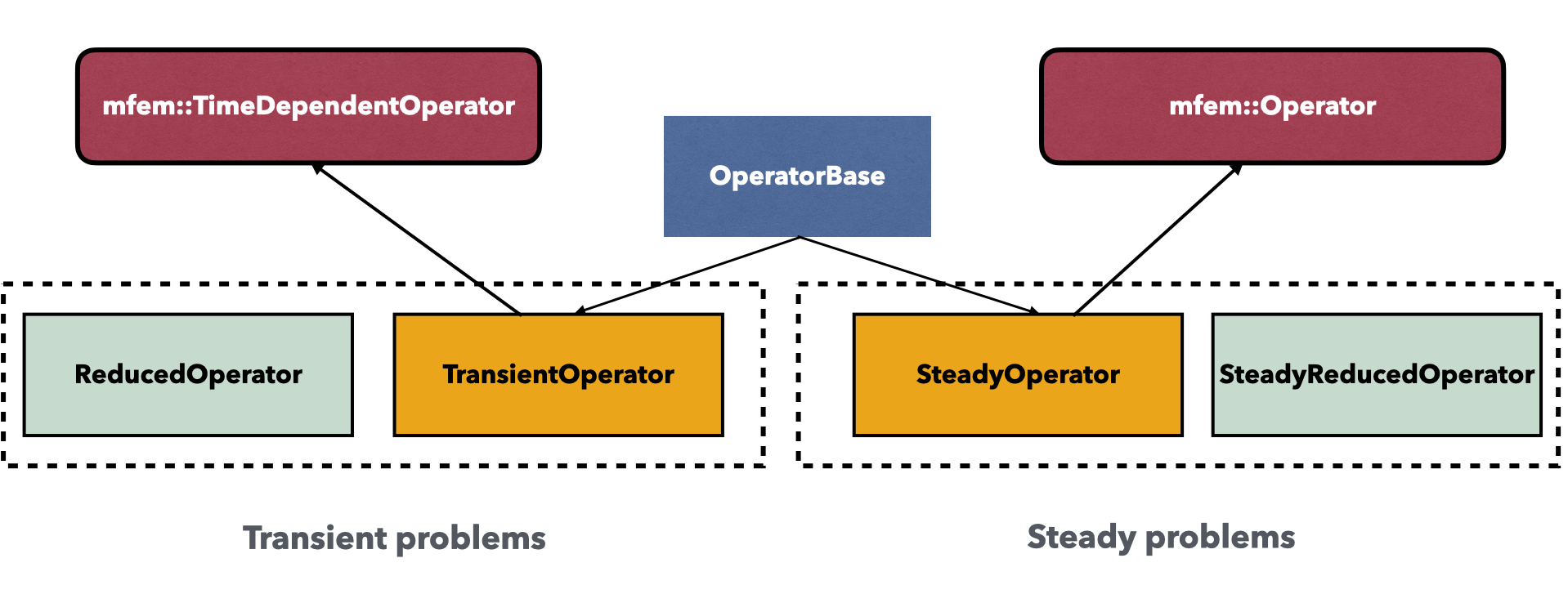

Figure 2 : Three main classes managing the resolution of the non linear system.

As illustrated in the figure 3, these operators are associated with NonLinearFormIntegrators which are used to compute the residual vector and the Jacobian matrix for the nonlinear problems.

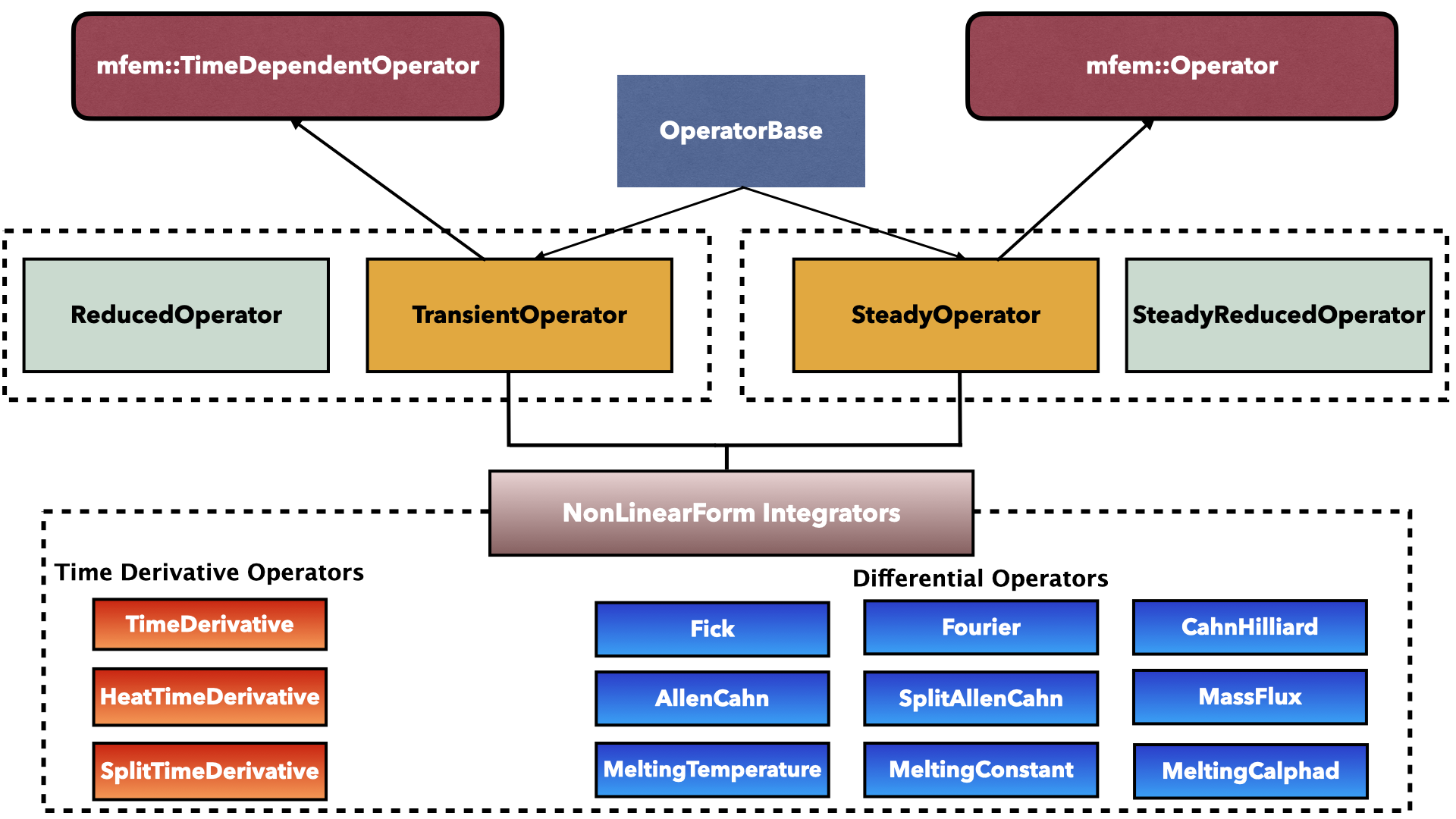

Figure 3 : Specific `Integrators` implemented in `SLOTH`.

How to define Partial Differential Equations?

Integrators

All SLOTH integrators inherit from the MFEM BlockNonlinearFormIntegrator class. In the figure 3, the integrators are gathered in two grouped:

• Time Derivative Integrators (see $F$ in the equation (1)): TimeDerivative, SplitTimeDerivative, HeatTimeDerivative. They are only used for transient problems.

  TimeDerivativeSplitTimeDerivativeHeatTimeDerivative

  This integrator concerns the following mathemical expression:

  $$\begin{align} \frac{\partial \varphi}{\partial t} \end{align}$$

  This integrator concerns the following vectorial expression:

  $$\begin{pmatrix} 0 \\ \displaystyle\frac{\partial \varphi}{\partial t} \end{pmatrix}$$

  This integrator must be associated with the SplitAllenCahn and CahnHilliard integrators.

  This integrator concerns the following mathemical expression:

  $$\begin{align} \rho C_p\frac{\partial T}{\partial t} \end{align}$$

  where $\rho$ and $C_p$ are two SLOTH coefficients of type GlossaryType::Concentration and GlossaryType::HeatCapacity, respectively. By default, coefficients are set to one.

• Differential Operators (see $G$ in the equation (1)): Fick, Fourier, MassFlux, AllenCahn, SplitAllenCahn, CahnHilliard, MeltingCalphad, MeltingConstant, MeltingTemperature, LatentHeat. They can be combined as for example, AllenCahn and MeltingTemperature.

  FickFourierMassFluxAllenCahnSplitAllenCahnCahnHilliardMeltingConstantMeltingTemperatureMeltingCalphadLatentHeat

  This integrator concerns the following mathemical expression:

  $$\begin{align} \nabla\cdot \left[D(\varphi)\nabla \varphi \right] \end{align}$$

  where $D$ is a mandantory SLOTH coefficient of type GlossaryType::Diffusivity.

  This integrator concerns the following mathemical expression:

  $$\begin{align} \nabla\cdot \left[k(T)\nabla T \right] \end{align}$$

  where $k$ is a mandantory SLOTH coefficient of type GlossaryType::Conductivity.

  This integrator concerns the following mathematical expression:

  $$\begin{align} \sum_{i}\nabla \cdot \left(M_i \nabla \zeta_i\right) \end{align}$$

  where $M_i$ are mobility-type coefficients and \(\zeta_i\) diffusion potentials. The latter can be defined as a function of chemical potentials $\mu_i$ or diffusion potentials $\mu_i-\mu_n$, which can themselves be scaled by temperature:

  $$\begin{array}{l} \zeta_i\leadsto\mu_i \\ \zeta_i\leadsto\displaystyle\frac{\mu_i}{T} \\ \zeta_i\leadsto {\mu_i-\mu_n} \\ \zeta_i\leadsto\displaystyle\frac{\mu_i-\mu_n}{T} \end{array}$$

  Three parameters are available with this integrator. They are listed in the table 1.

  Parameter Name	Type	Default Value	Description
  ScaleVariablesByTemperature	bool	false	indicates wheter potentials are scaled by temperature
  ScaleCoefficientsByTemperature	bool	false	indicates wheter mobility coefficients are scaled by temperature
  EnableDiffusionChemicalPotentials	bool	false	indicates wheter diffusion potentials are considered

  Table 1 - parameters allowed with MassFlux

  For simulations based on this integrator, temperature, potentials and mobility coefficients must be defined as an auxiliary variable of problem.

  This integrator concerns the following vectorial expression:

  $$\begin{align} M_i{\left(\nabla \cdot \left[\lambda_i \nabla \varphi_i\right] - \displaystyle\frac{\partial F_i}{\partial \varphi_i}\right)}_i \end{align}$$

  where $M_i$, $\lambda_i$, and $F_i$ are mandantory SLOTH coefficients of type GlossaryType::Mobility, GlossaryType::Capillary and GlossaryType::FreeEnergy, respectively.

  This integrator concerns the following vectorial expression:

  $$\Biggl( \begin{array}{c} \eta - \nabla \cdot \left(\lambda \nabla \varphi\right) + \dfrac{\partial F}{\partial \varphi} \\ M \eta \end{array} \Biggr)$$

  where $M$, $\lambda$, and $F$ are mandantory SLOTH coefficients of type GlossaryType::Mobility, GlossaryType::Capillary and GlossaryType::FreeEnergy, respectively.

  This integrator must be associated with the SplitTimeDerivative integrator.

  This integrator concerns the following vectorial expression:

  $$\Biggl( \begin{array}{c} \mu - \nabla \cdot \left(\lambda \nabla \varphi\right) + \dfrac{\partial F}{\partial \varphi} \\ \nabla \cdot \left(M \nabla \mu\right) \end{array} \Biggr)$$

  where $M$, $\lambda$, and $F$ are mandantory SLOTH coefficients of type GlossaryType::Mobility, GlossaryType::Capillary and GlossaryType::FreeEnergy, respectively.

  This integrator must be associated with the SplitTimeDerivative integrator.

  This integrator concerns the following mathemical expression:

  $$\begin{align} M \alpha p'(\varphi) \end{align}$$

  where $M$, $p$ are mandantory SLOTH coefficients of type GlossaryType::Mobility and GlossaryType::PhaseFieldPotential, respectively.

  $\alpha$ is the enthalpy of melting. It is constant and equal to the value of parameter named melting_factor.

  This integrator can be used to simulate melting phenomena based on an ad-hoc melting contribution.

  For these simulations, it must be associated with the AllenCahn integrator.

  This integrator concerns the following mathemical expression:

  $$\begin{align} M \alpha p'(\varphi) \end{align}$$

  where $M$, $p$ are mandantory SLOTH coefficients of type GlossaryType::Mobility and GlossaryType::PhaseFieldPotential, respectively.

  $\alpha$ is the enthalpy of melting defined by:

  $$\begin{align} \alpha&=&H_m\, ?\, T\geq T_m : 0 \end{align}$$

  where $H_m$ is the enthalpy of melting, $T$ the temperature and $T_m$ the temperature of melting.

  This integrator can be used to simulate melting phenomena based on an ad-hoc melting contribution.

  For these simulations, it must be associated with the AllenCahn integrator.

  Two mandatory parameters are requested by this integrator. They are listed in the table 1.

  Parameter Name	Type	Default Value	Description
  melting_temperature	double		melting temperature
  melting_enthalpy	double		melting enthalpy

  Table 1 - parameters allowed with MeltingTemperature

  For simulations based on this integrator, temperature must be defined as an auxiliary variable of the phase-field problem.

  This integrator concerns the following mathemical expression:

  $$\begin{align} M \alpha \left[ p'(\varphi) + \mathcal{S}\right] \end{align}$$

  where $M$, $p$ are mandantory SLOTH coefficients of type GlossaryType::Mobility and GlossaryType::PhaseFieldPotential, respectively.

  $\mathcal{S}$ is an optional seed value mimicking a nucleus calculated by a CALPHAD problem.

  $\alpha$ is the enthalpy of melting calculated by a CALPHAD problem.

  This integrator can be used for CALPHAD-informed phase-field simulation¹. For these simulations, it must be associated with the AllenCahn integrator.

  Two mandatory parameters are requested by this integrator. They are listed in the table 1.

  Parameter Name	Type	Default Value	Description
  primary_phase	std::string		name of the phase before melting
  secondary_phase	std::string		name of the phase after melting

  Table 1 - parameters requested by MeltingCalphad

  For simulations based on this integrator, CALPHAD outputs -driving forces and nucleus- must be defined as auxiliary variables of the phase-field problem.

  This integrator concerns the following mathemical expression:

  $$\begin{align} \dfrac{1}{M}\left[ \dfrac{\partial \varphi}{\partial t} \right]^2 \\ \end{align}$$

  where $M$ is a mandantory SLOTH coefficient of type GlossaryType::Mobility.

  This integrator can be only associated with the Fourier integrator to solve heat transfer equation for two-phase problems.

On the inheritance from BlockNonlinearFormIntegrator instead of NonlinearFormIntegrator

For SLOTH integrators, inheriting from BlockNonlinearFormIntegrator maximizes the generality of the implementation, as it allows solving both single-unknown problems and problems with several unknowns.

Operators

TransientOperatorSteadyOperator

This operator allows solving transient problems.

TransientOperator is a template class instantiated with two template parameters: first, the kind of finite element and second, the spatial dimension.

Alias declaration for TransientOperator class template

This example show how to define a convenient alias for the TransientOperator class template instantiated with mfem::H1_FECollection in dimension 3.

using OPERATOR = TransientOperator<mfem::H1_FECollection, 3>;

The OPERATOR operator must be defined by:

• a vector of spatial discretisation objects (see Meshing) [required],
• a vector of strings specifying the integrators used to model spatial differential operators [required],
• a set of parameters (see Parameters) [optional],
• a ODE solver for time stepping [required],
• a string specifying the integrator used to model time derivative operator [required].

On the size of the vector of spatial discretisation objects

In SLOTH, each operator is designed to solve a system of PDEs with a monolithic algorithm. The size of the vector of spatial discretisation objects must be equal to the number of unknowns.

Regarding the time stepping, three ODE solvers have been integrated in SLOTH among those provided by MFEM:

• The backward Euler method (SLOTH object TimeScheme::EulerImplicit),
• The forward Euler method (SLOTH object TimeScheme::EulerExplicit),
• The Runge-Kutta 4 method (SLOTH object TimeScheme::RungeKutta4).

Extension of the list of ODE solver in SLOTH

MFEM provides several ODE solvers. To begin, SLOTHdevelopment team integrates the most common methods, namely Euler and Runge-Kutta 4 methods.

In the future, this list could be extended to account for high order methods.

Definition of a transient operator

This example assume a Cahn-Hilliard problem with two unknowns (phi and mu). The OPERATOR object, denoted by phasefield_ope, is well declared with a vector of two spatial discretization objects, the CahnHilliard and SplitTimeDerivative integrators and an Euler Implicit time-stepping method.

using OPERATOR = TransientOperator<mfem::H1_FECollection, 3>;
std::vector<SPA*> spatials{&spatial, &spatial};
OPERATOR phasefield_ope(spatials, {"CahnHilliard"}, TimeScheme::EulerImplicit, "SplitTimeDerivative");

Definition of a transient operator with a combination of integrators

The integrators for the differential operators can be combined.

using OPERATOR = TransientOperator<mfem::H1_FECollection, 3>;
std::vector<SPA*> spatials{&spatial};
OPERATOR phasefield_ope(spatials, {"AllenCahn", "MeltingConstant"}, TimeScheme::EulerImplicit, "TimeDerivative");

In the following example, the operator enables to solve the following equation:

$$\begin{align} \dfrac{\partial \varphi}{\partial t} = M\left(\nabla \cdot \left[\lambda \nabla \varphi\right] - \displaystyle\frac{\partial F}{\partial \varphi}\right)+ M \alpha p'(\varphi) \end{align}$$

where $\alpha$ is a constant enthalpy of melting.

This operator allows solving steady problems.

SteadyOperator is a template class instantiated with two template parameters: first, the kind of finite element and second, the spatial dimension.

Alias declaration for SteadyOperator class template

This example show how to define a convenient alias for the SteadyOperator class template instantiated with mfem::H1_FECollection in dimension 3.

using OPERATOR = SteadyOperator<mfem::H1_FECollection, 3>;

The OPERATOR operator must be defined by:

• a vector of spatial discretisation objects (see Meshing) [required],
• a vector of strings specifying the integrators used to model spatial differential operators [required],
• a set of parameters (see Parameters) [optional].

On the size of the vector of spatial discretisation objects

In SLOTH, each operator is designed to solve a system of PDEs with a monolithic algorithm. The size of the vector of spatial discretisation objects must be equal to the number of unknowns.

Definition of a steady operator

This example assume an Allen-Cahn problem with one unknowns (phi). The OPERATOR object, denoted by phasefield_ope, is well declared with a vector of one spatial discretization object and the AllenCahn integrator.

using OPERATOR = SteadyOperator<mfem::H1_FECollection, 3>;
std::vector<SPA*> spatials{&spatial, &spatial};
OPERATOR phasefield_ope(spatials, {"AllenCahn"});

Problems

As already mentioned, Problem for SLOTH is a template class instantiated with three template parameters: first, an OPERATOR object, second, a Variables object, and third, a PostProcessing object.

Alias declaration for Problem class template

using PDE = Problem<OPERATOR, VARS, PST>;

The PDE problem must be defined by:

• an Operator [required],
• primary Variables [required],
• a vector of Coefficients [required],
• a set of parameters (see Parameters) [optional],
• an PostProcessing object [required],
• a set of auxiliary Variables [optional].

On the size of the vector of Coefficients objects

The size of the vector of Coefficients objects must be equal to the number of variables.

On the order of the vector of Coefficients objects

The order of coefficent in the vector of Coefficients objects corresponds the order unknowns in the Variables object.

Definition of a Cahn-Hilliard problem

using OPERATOR = SteadyOperator<mfem::H1_FECollection, 3>;
std::vector<SPA*> spatials{&spatial, &spatial};

// Variables: phi, mu
auto phi = VAR(&spatial, bcs_phi, "phi", Glossary::PhaseField, 2, phi_initial_condition);
auto mu = VAR(&spatial, bcs_mu, "mu", Glossary::ChemicalPotential, 2, mu_initial_condition);
auto vars = VARS(phi, mu);

// Operator
OPE phasefield_ope(spatials, {"CahnHilliard"}, TimeScheme::EulerImplicit, "SplitTimeDerivative");

// Coefficients
//  Interface thickness
const double epsilon(0.02);
// Two-phase mobility
const double mob(1.);
// Gradient coefficient
const double lambda = (epsilon * epsilon);
Coefficient grad_energy(Glossary::GradEnergy, Scheme::Implicit, GradientEnergy(lambda));
Coefficient double_well(Glossary::FreeEnergy, Scheme::Implicit, W(omega));
Coefficient capillary(Glossary::Capillary, lambda);
Coefficient mobility(Glossary::Mobility, mob);

Coefficients coef_phase_field(double_well, capillary, mobility, grad_energy);

// Problem (pst is PostProcessing object not detailed here)
PDE phase_filed_pb(phasefield_ope, vars, {coef_phase_field, coef_phase_field}, pst);

This example assume an two-phase problem solved by Cahn-Hilliard equations with two unknowns (phi and mu).

$$\begin{pmatrix} 0 \\ \dfrac{\partial \varphi}{\partial t} \end{pmatrix} = \begin{pmatrix} \mu - \nabla \cdot \left(\lambda \nabla \varphi\right) + \dfrac{\partial F}{\partial \varphi} \\[1ex] \nabla \cdot \left(M \nabla \mu\right) \end{pmatrix}$$

The OPERATOR object, denoted by phasefield_ope, is well declared with a vector of two spatial discretization objects, the CahnHilliard integrator for the right-hand-side of PDEs and the SplitTimeDerivative for the left-hand-side.

For this example, the Backward Euler method is considered (see TimeScheme::EulerImplicit).

For this problem, a vector of two Coefficients is considered for phi and mu, respectively. Here, the same Coefficients are used for both variables accordingly with the CahnHilliard integrator. As expected by this integrator, coefficients of type Glossary::FreeEnergy, Glossary::Capillary and Glossary::Mobility are defined. The coefficient of type Glossary::GradEnergy is only used to compute the gradient terms in the output of the density of energy.

This example has no parameters or auxiliary variables.

---

1. Clément Introïni, Jérôme Sercombe, Isabelle Ramière, and Romain Le Tellier. Phase-field modeling with the taf-id of incipient melting and oxygen transport in nuclear fuel during power transients. Journal of Nuclear Materials, 556:153173, 2021. ↩
