Tutorial: Using Adaptive Mesh Refinement (AMR)

This tutorial explains how to enable Adaptive Mesh Refinement (AMR) on a SLOTH simulation.

It builds on a standard Cahn-Hilliard simulation (see the Cahn-Hilliard examples) and highlights only the additions required to switch it on.

1. Building AMR-ready Spatial Discretizations

Step 1 – Enable non-conforming refinement on the mesh

AMR relies on locally refining/coarsening a mesh, which requires the mesh to support non-conforming refinement (see the dedicated page on the MFEM website for more details). This is enabled by adding two boolean flags, enable_nc_mesh and allow_nc_simplices, as the last arguments of the SPA constructor, whatever the type of mesh (periodic or not, built from file or not):

SPA spatial_phi(mesh_type, order_fe, refinement_level, tuple_of_dimensions, /*enable_nc_mesh*/ true);

• enable_nc_mesh (default false) is the flag that actually builds the mesh in non-conforming mode. It must be set to true to use AMR - a conforming mesh cannot be converted afterwards.
• allow_nc_simplices (default false, omitted above) additionally allows non-conforming refinement on triangle/tetrahedron elements specifically; it has no effect on quadrilateral/hexahedral meshes such as the one used here. If your mesh is made of triangles or tetrahedra, pass it explicitly too:

SPA spatial_phi(mesh_type, order_fe, refinement_level, tuple_of_dimensions, /*enable_nc_mesh*/ true, /*allow_nc_simplices*/ true);

The value passed for allow_nc_simplices can later be read back with is_nc_simplices(), which is needed to configure the AMR driver (see Step 3). See the Meshing page of the User Manual for the full constructor signatures (GMSH and MFEM inline meshes, with or without periodicity).

Step 2 – Share the same mesh across all variables

All the variables involved in the coupling must live on the same mesh, so that a refinement decision taken for one variable is consistently applied to every finite element space. Additional SPA objects are therefore built from the mesh of the first one, rather than from mesh_type / tuple_of_dimensions again:

SPA spatial_mu(spatial_phi.get_mesh(), order_fe);

Building an SPA object from an existing mesh is also interesting for simulations that do not involve AMR. Such an approach lets several variables share the same mesh while using different finite element orders (order_fe) for each of them. If every variable uses the same finite element order, a single SPA object is enough — there is no need to build additional ones from get_mesh(). With AMR, this pattern becomes essential, since it is now the only way to guarantee that every variable follows the same sequence of refinements/derefinements applied to the shared mesh.

Here, spatial_mu gets its own, independent finite element space (it can even use a different order_fe), while sharing the mesh (mfem::ParMesh) held by spatial_phi. This constructor also accepts a third, optional argument, is_periodic_mesh (default false): if the shared mesh is periodic, pass spatial_phi.is_periodic() so that spatial_mu reports its periodicity correctly too.

Mesh ownership

spatial_mu does not take ownership of the mesh: it will never delete it. The SPA object that originally created the mesh (spatial_phi here) must therefore outlive every SPA object built from it.

AMR Requirements

To use AMR, the following conditions must be satisfied:

• The SPA object driving the mesh must be built with enable_nc_mesh set to true (and allow_nc_simplices set to true as well, if the mesh is made of triangles/tetrahedra).
• Every other SPA object used by the variables of the coupling must be built from that same mesh, using spatial.get_mesh(), rather than from a new mesh definition.
• Boundary conditions (BCS) and variables (VAR) are then declared exactly as usual, one per SPA object.

2. Defining an Error Estimator

Refinement decisions are driven by an error estimator, evaluated on the mesh shared in Step 1. It can be built from an MFEM bilinear form integrator and wrapped into a SlothErrorEstimators object:

mfem::ConstantCoefficient amr_coef{1.0};
mfem::DiffusionIntegrator amr_integ{amr_coef};
SlothErrorEstimators estimator(ErrorEstimatorType::KELLY, &amr_integ);

• amr_integ is a standard MFEM integrator (here mfem::DiffusionIntegrator, built from a constant coefficient) used to evaluate the estimator on each mesh face.
• ErrorEstimatorType::KELLY selects the Kelly error estimator, which flags elements for refinement based on the jump of the estimated quantity across element faces.

Available error estimators

SLOTH currently provides two error estimators built on top of MFEM: ErrorEstimatorType::KELLY (shown above) and ErrorEstimatorType::L2_ZIENKIEWICZ_ZHU (Zienkiewicz–Zhu). More estimators may be added in the future. See the Adaptive Mesh Refinement page of the User Manual for a complete description of each estimator and how to configure it.

3. Configuring the AMR Driver

Step 1 – Create the AMR object

The SingleVariableAMR object drives the refinement/coarsening of the shared mesh, based on one "driving" variable of the coupling:

SingleVariableAMR<VARS> amr(*spatial_phi.get_mesh(), spatial_phi.is_nc_simplices(), 0);

Its arguments are:

1. The shared mesh (dereferenced mfem::ParMesh returned by get_mesh()).
2. Whether non-conforming refinement was allowed on simplex elements when the mesh was built, obtained with is_nc_simplices() — this must simply mirror the allow_nc_simplices value passed to the SPA constructor (see Step 1); for quadrangle/hexahedron meshes such as the one used here, it is left at its default (false).
3. The index, within VARS, of the variable used to drive the refinement (0 here refers to the first variable declared in vars, i.e. phi).

Driving the refinement with several variables

When a single variable is not sufficient to characterize where the mesh should be refined, SLOTH also provides MultiVariableMaxAMR<VARS>, which considers every variable of VARS at once — its constructor takes no variable index. For each element, the per-variable errors are combined by taking their maximum, and the mesh is refined/derefined once from this combined criterion, so an element is a candidate as soon as any variable needs it resolved there. Refer to the Adaptive Mesh Refinement page of the User Manual for details.

Step 2 – Set the refinement criteria

auto amr_params = Parameters(Parameter("max_elem_error", 1.e-4), Parameter("amr_max_level", 4),
                               Parameter("nc_limit", 0), Parameter("max_preref_cycles", 4));
amr.SetCriteria(/*estimator*/ &estimator, amr_params);

Argument/Parameter	Type	Description
estimator	SlothErrorEstimators*	The error estimator defined in Section 2.
max_elem_error	double	Error threshold above which an element is flagged for refinement.
amr_max_level	int	Maximum number of refinement levels allowed for any element.
nc_limit	int	Maximum allowed level difference between two neighboring elements (0 = no limit enforced).
max_preref_cycles	int	Number of refinement/derefinement passes applied to the mesh, based on the initial condition of the driving variable, before the first time step is solved.

Step 3 – Attach the AMR driver to the problem

problem1.set_amr(&amr);

Once attached, SLOTH automatically checks the refinement criteria and updates the shared mesh (and every finite element space and variable built on it) as the simulation progresses — no further action is required from the user during time integration.

Summary

Enabling AMR on a SLOTH simulation consists of:

1. Building the first SPA object with enable_nc_mesh set to true (and allow_nc_simplices too, for triangle/tetrahedron meshes), then building every other SPA object of the coupling from its shared mesh (spatial.get_mesh()).
2. Defining an error estimator (SlothErrorEstimators) from an MFEM integrator.
3. Creating a SingleVariableAMR (or MultiVariableMaxAMR) object, setting its refinement criteria with SetCriteria, and attaching it to the problem with set_amr.

Complete Example

A complete working example is available in the SLOTH repository:

• 2D spinodal decomposition (Cahn-Hilliard) with AMR: https://github.com/Collab4Sloth/SLOTH/blob/master/tests/CahnHilliard/2D/test2_amr/main.cpp

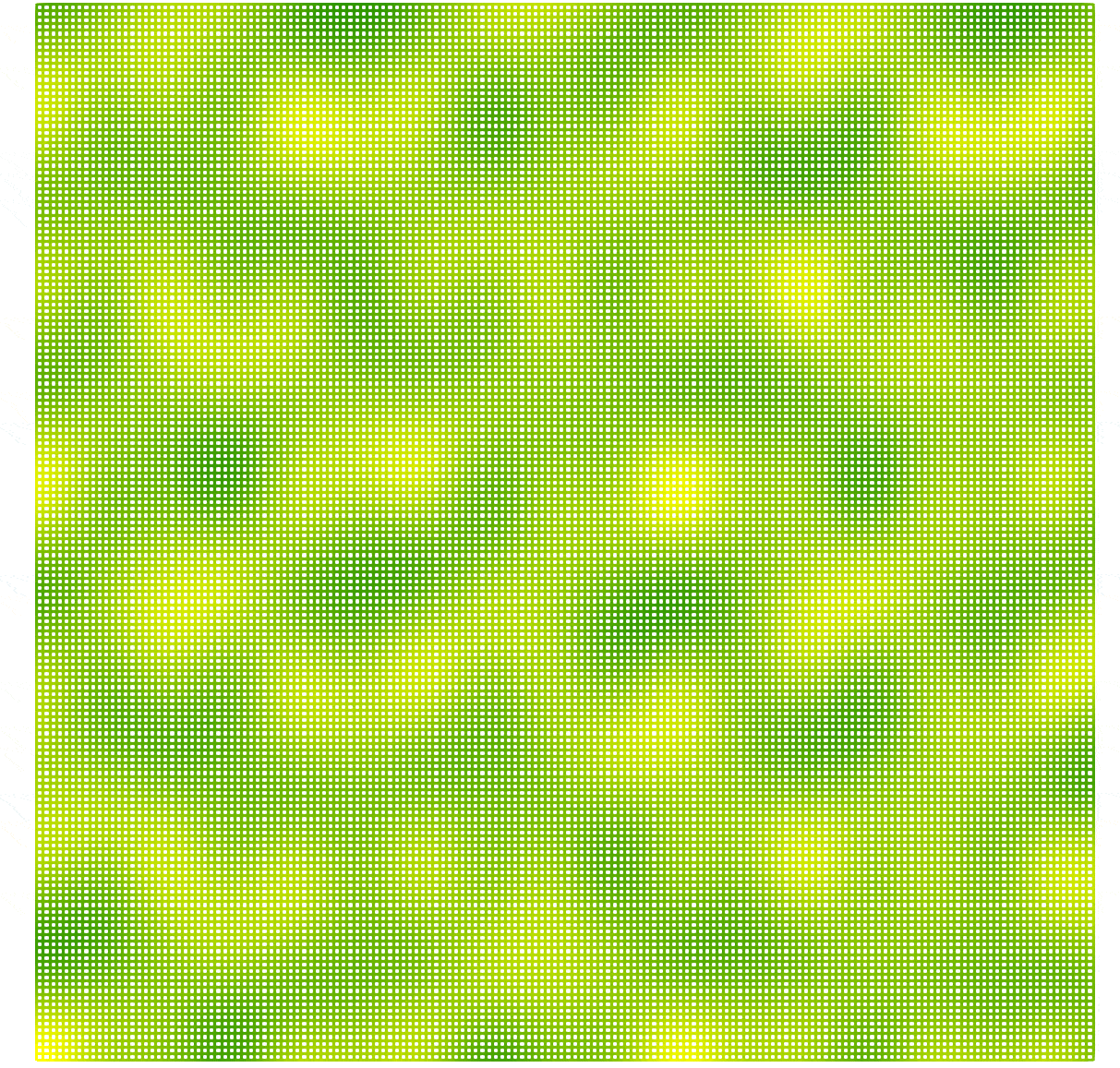

The figure 1 shows the evolution of the spinodal decomposition with AMR (until a final simulation time set to $50000$).

Figure 1 : spinodal decomposition with AMR
